Coehorn Hardware Kit

Coehorn Mortar Base – Hardware kit & Plans

$275.90

Availability:

In Stock & Ready to Ship

Quick description

Hardware Kit & Plans to outfit your Coehorn Mortar!  Used with the 2-1/4″ OR 3″ bore tubes.

Click Here to download cannon purchase agreement





Compare
Share this:

CAN28 – Coehorn Mortar Base – Hardware Kit & Plans, 30#

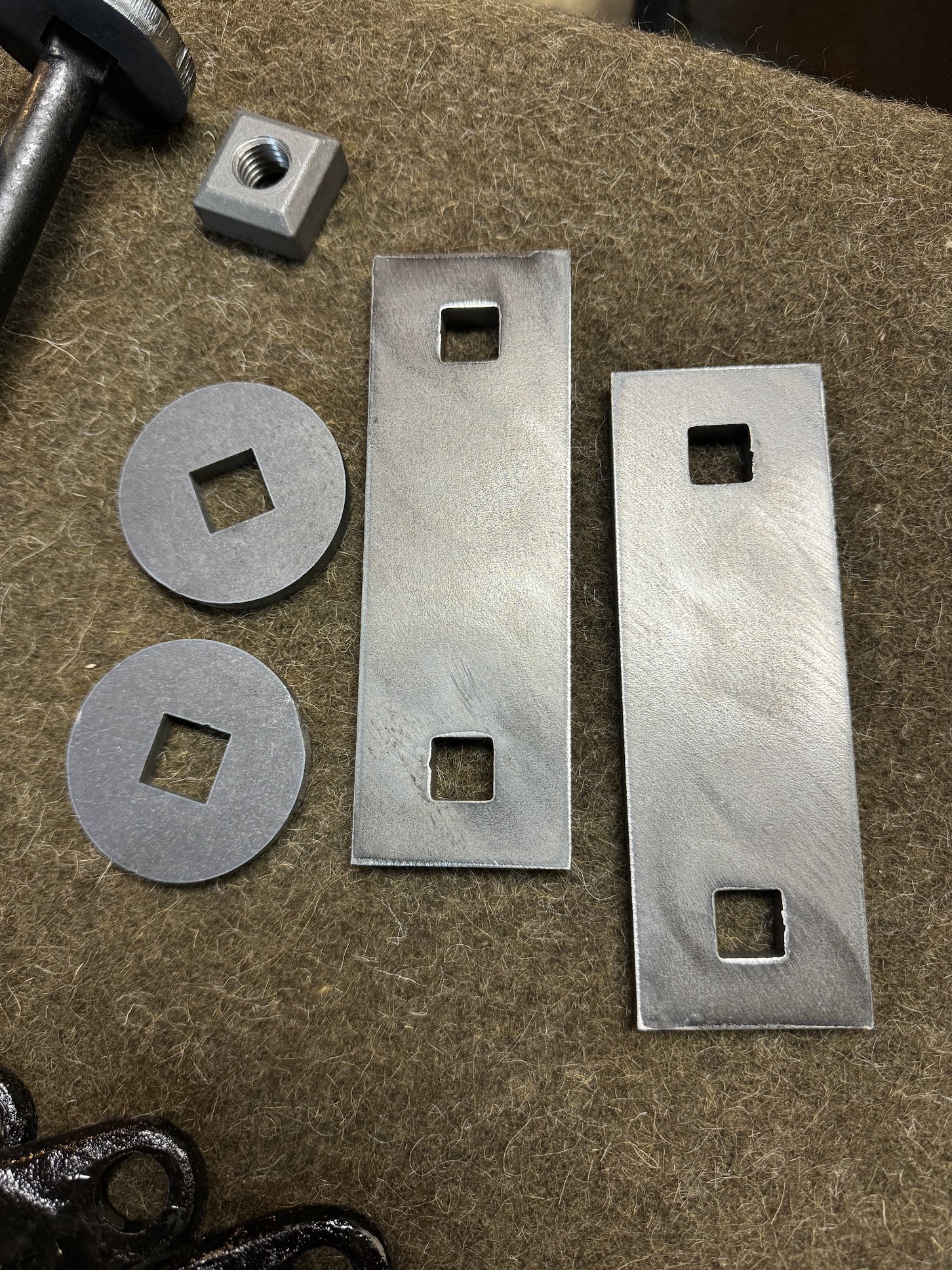

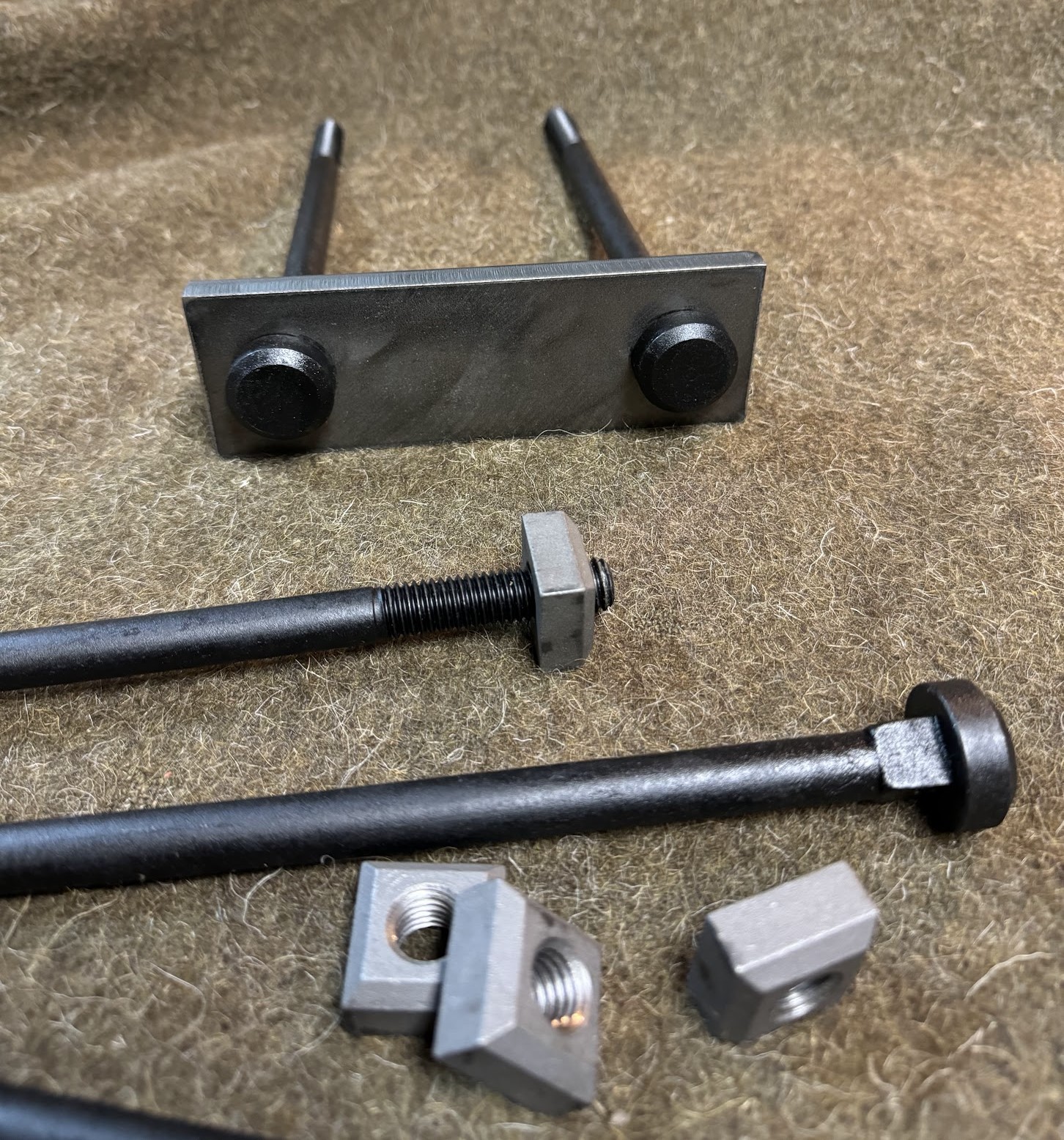

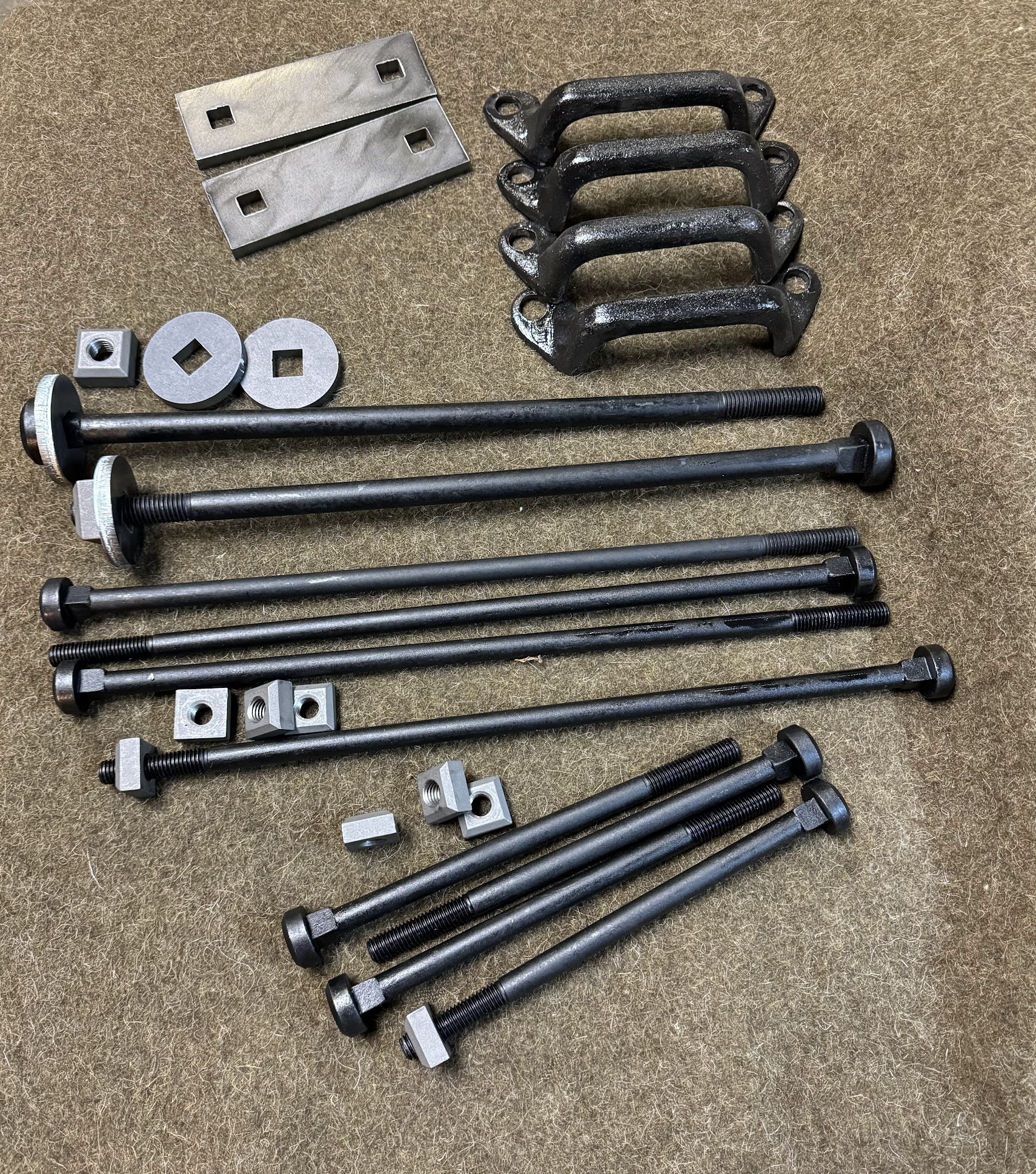

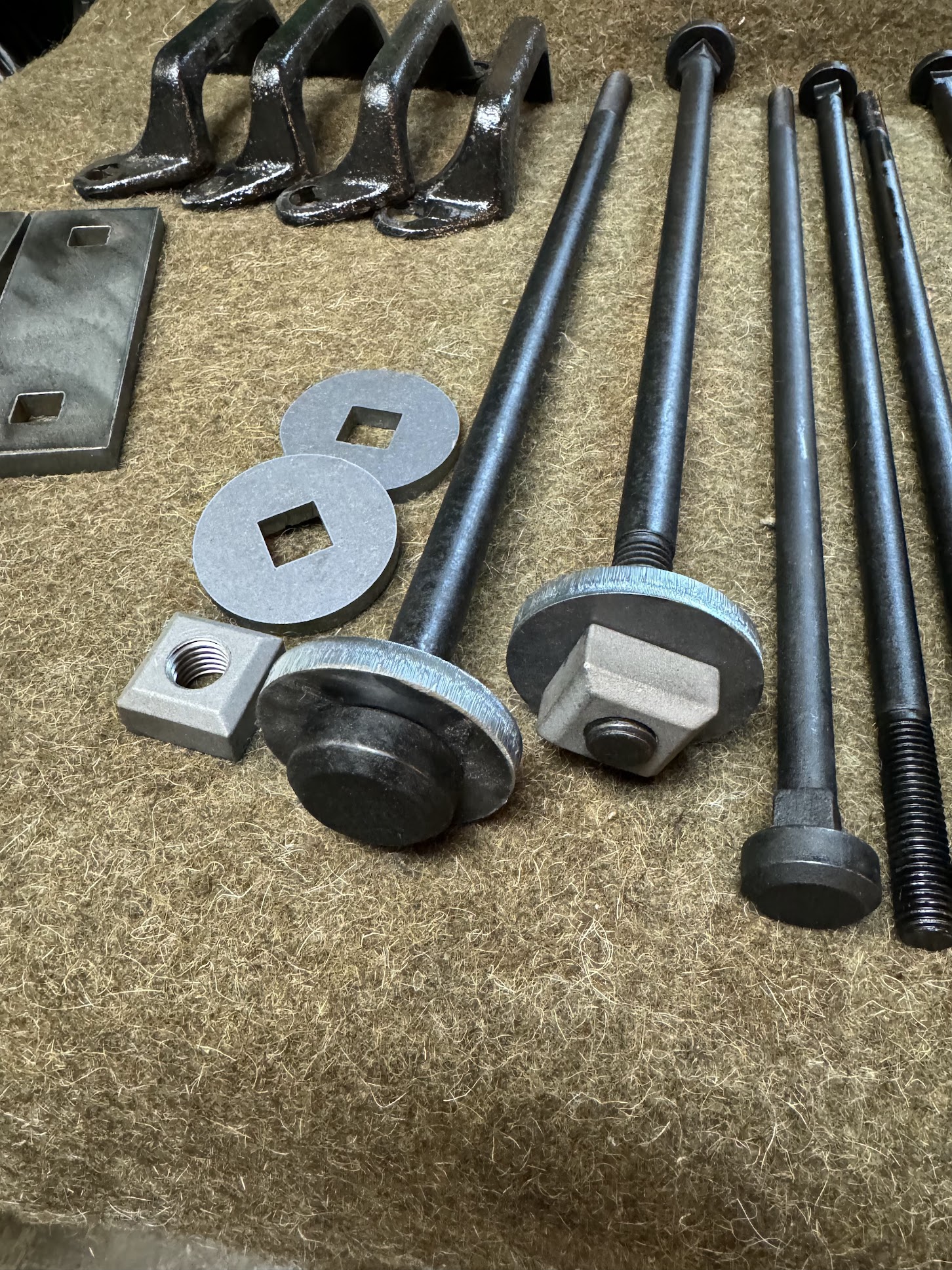

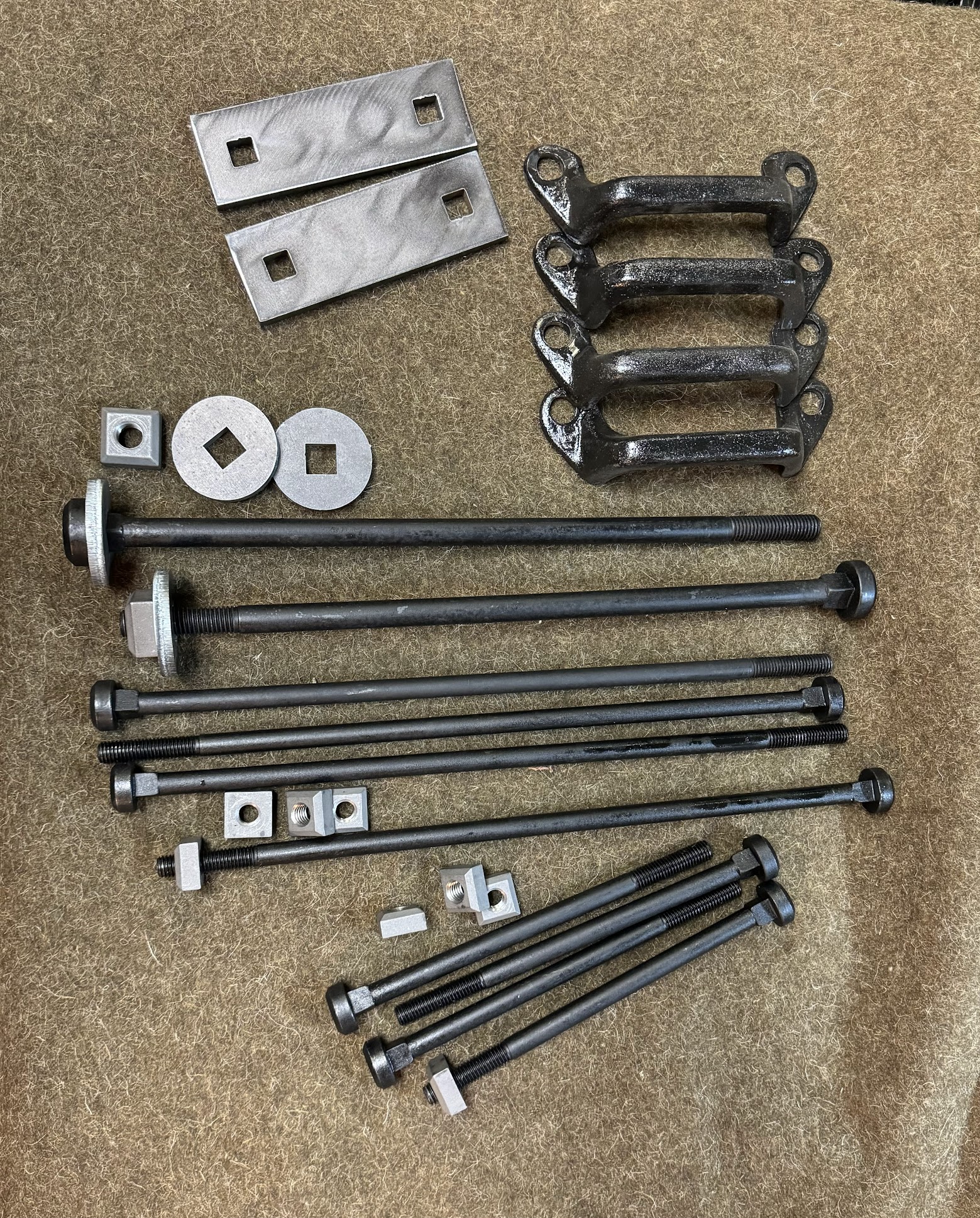

This mortar looks great on the Base available on this site as a Hardware Kit and Plans for the Coehorn mortar bed.  You will not be disappointed with this historically accurate Kit & gun!  (Please note – Hardware Kit includes 2 pair of trail handles, do not buy a kit AND additional handles unnecessarily.)

Kit is boxed and packaged for UPS shipment to the US of A — Included with the price shown.

I generally keep one or more on hand as these are quite popular; sometimes we do run out of stock but will let you know if there will be a delay in fulfilling your order!

From John Hern’s original instruction sheet (provided with the kit): “This set of hardware is designed to provide the builder of a Coehorn Mortar bed – metal parts as close as possible to the original specifications.  The furnished drawing is taken from original War Department sources and should be referred to in the event of questions.  Originally, the hardware was all hand forged according to the drawing.  Since this would be cost-prohibitive today, we have supplied the closest commonly available item.”





Weight 80 lbs
Dimensions 00 in
Dimensions

Bore – 2 1/4, BREECH: 5 1/2″, CHEEKS: 6 14″, OAL: 13 1/2″, TRUN D: 2 1/4″, TRUN L: 1 3/8″, TRUN OAL: 9 1/8″, TRUN-CASC: N/A
